Socket Weld Elbow Welding Process

Socket Weld Elbow Welding Process

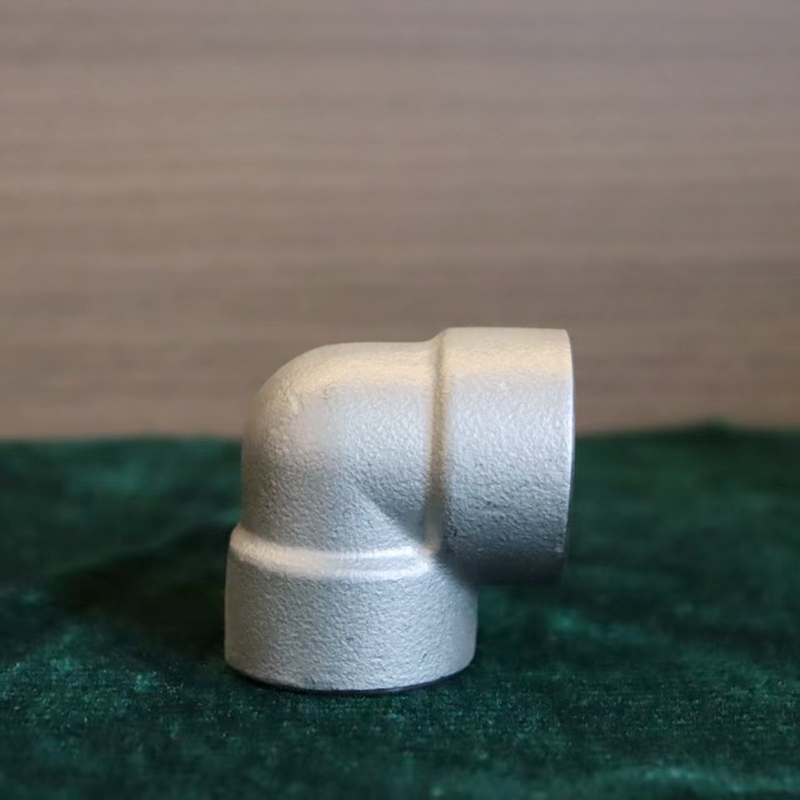

Welding socket weld elbows requires precise technique to ensure strong, leak-proof joints and maintain the integrity of the piping system. Below is an overview of the typical welding process used for socket weld elbows:

Preparation

Pipe and Fitting Cleaning: Remove rust, oil, grease, dirt, and any contaminants from the pipe end and inside the socket of the elbow.

Cut and Deburr: Cut the pipe end squarely and remove burrs to ensure smooth insertion.

Fit-Up: Insert the pipe fully into the socket until it bottoms out, then pull it back slightly (typically about 1/16 inch or 1.5 mm) to allow for thermal expansion during operation.

Alignment and Tack Welding

Align the elbow and pipe properly to avoid misalignment that could cause stress and weld defects.

Apply tack welds at multiple points around the joint to hold the components in position.

Welding

Use the appropriate welding method according to the pipe material and project specifications (commonly SMAW, GTAW, or GMAW).

Weld the fillet around the socket joint, ensuring good penetration and fusion between pipe and fitting.

Maintain correct welding parameters (current, voltage, speed) to avoid defects such as undercut, porosity, or slag inclusion.

Interpass Cleaning and Temperature Control

Clean slag and spatter between welding passes if multiple passes are required.

Monitor interpass temperature to prevent overheating or excessive thermal stress.

Post-Weld Treatment

Depending on the material and service conditions, post-weld heat treatment (PWHT) may be necessary to relieve residual stress and improve weld toughness.

Allow the weld to cool gradually to avoid cracking.

Inspection

Perform visual inspection to check for surface defects.

Conduct non-destructive testing (NDT) such as dye penetrant, radiography, or ultrasonic testing as required by project standards.

Summary
The welding of socket weld elbows demands careful preparation, precise fit-up, controlled welding technique, and thorough inspection to ensure high-quality, durable joints suitable for demanding piping applications.
