Common Flange Failures and Repair Methods in Oil Pipeline Systems

Common Flange Failures and Repair Methods in Oil Pipeline Systems

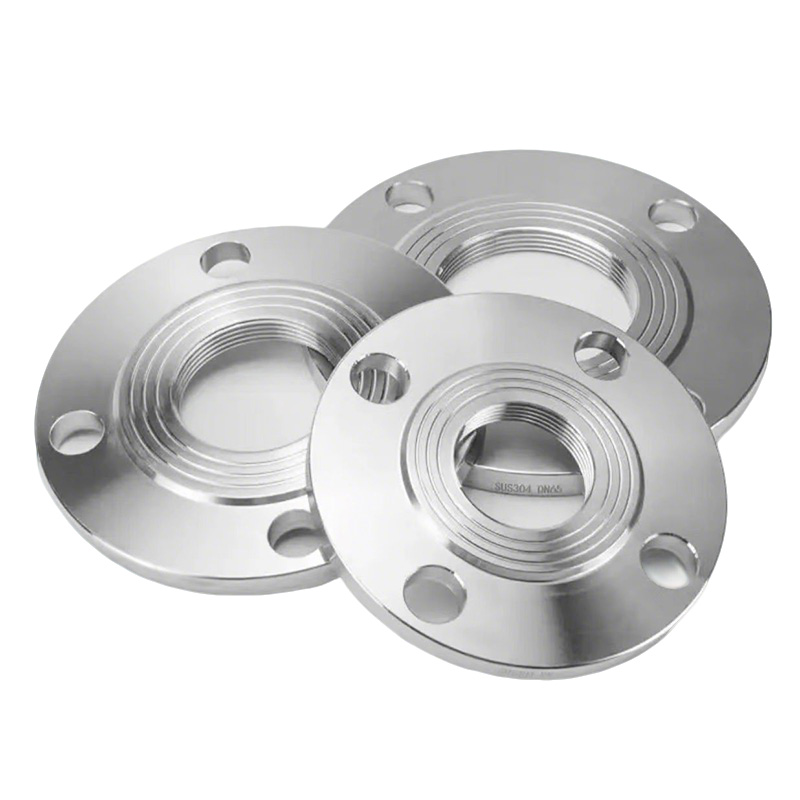

Flanges in oil pipelines are critical connection points that must maintain a reliable seal under high pressure, temperature, and often corrosive conditions. However, due to harsh operating environments, flanges can experience various failures. Timely identification and proper repair are essential to ensure system safety and reduce downtime.

1. Flange Leakage:
Leakage is the most frequent flange issue in oil pipelines. It may be caused by improper bolt torque, damaged gaskets, flange misalignment, or thermal cycling.

Repair Method:
Disassemble the joint, inspect and clean the flange faces, replace the gasket with a suitable type, and retighten bolts using the correct torque sequence. For persistent leaks, consider flange resurfacing or upgrading to a higher-grade gasket material.

2. Gasket Blowout:
Sudden failure or extrusion of the gasket can occur due to under-tightening, over-tightening, or using a gasket not rated for the system pressure or media.

Repair Method:
Shut down the system, replace the blown gasket with one suitable for pressure and chemical compatibility, and ensure bolts are tightened evenly to the specified torque.

3. Flange Face Damage (corrosion, pitting, or scratches):
Corrosion or mechanical damage to the sealing surface affects the gasket’s ability to seal.

Repair Method:
Light damage can be repaired by lapping or machining the flange face. For severe corrosion or deformation, the flange may need to be replaced. Apply anti-corrosion coatings or use a corrosion-resistant gasket in future operation.

4. Bolt Failure or Loosening:
Bolts can fail due to fatigue, corrosion, or thermal expansion. Loose bolts reduce gasket compression, leading to leaks.

Repair Method:
Replace damaged or corroded bolts with high-strength, corrosion-resistant types. Use torque wrenches or hydraulic tensioners for accurate preload. Consider applying anti-seize compound or using load-indicating washers.

5. Misalignment of Flanges:
Improper flange alignment during installation causes uneven gasket loading and stress on the joint.

Repair Method:
Realign the pipeline to ensure parallel flange faces. Use alignment tools or adjustable supports during reassembly to maintain proper positioning.

6. Flange Warping or Distortion:
High thermal stress or over-tightening can deform the flange, affecting sealing performance.

Repair Method:
If warping is minor, machining can restore flatness. Severely distorted flanges should be replaced. Ensure thermal expansion is considered in system design to prevent recurrence.

7. Vibration-Induced Failures:
Vibration from pumps or compressors can loosen bolts or damage gaskets over time.

Repair Method:
Install vibration dampeners or pipe supports, retighten bolts periodically, and use gaskets designed to withstand vibration.

Conclusion:
In oil pipeline systems, flange failures can result in serious safety hazards and operational disruptions. Regular inspection, proper material selection, and adherence to installation best practices are key to minimizing these problems. When failures occur, prompt and appropriate repair ensures the continued reliability and integrity of the pipeline.
